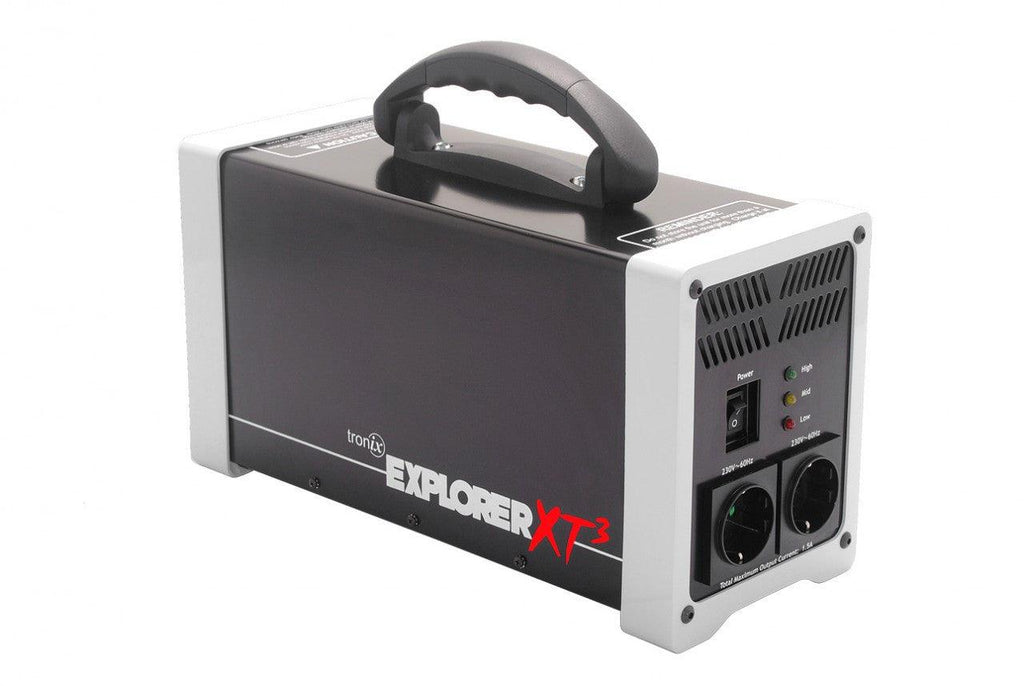

tronix ex Explorer XT3

OUTPUT

• Output Voltage (Model Designation): 230V/50Hz
• Power Output/Power Capacity: 800watts (1000VA)
• Current: 3.4A
• Waveform: Pure sine wave
• Sockets: Schuko (x2)

INPUT

• AC Input: 100-240V, 50/60Hz, 460-220mA (drained battery)/ 40-20mA (full battery), Connector:IEC C14
• DC Input: 12-14V, 500mA, Connector: Coaxial
• Auxiliary Battery: 24-28V, 40A, Connector: Neutrik powerCon NAC3MPA

BATTERY

• Type: Maintenance-free, Sealed-Lead Acid (2 pieces)
• Voltage:12V
• Capacity: 9Ah (per battery)
• Charging Time: 6 to 9 hours
• Runtime: Online - 10 hrs at no load

INDICATORS

• Visual: Green, Yellow and Red LEDs for battery status, Green LED for charging status

PHYSICAL

• Dimensions: 37cm x 15cm x 23cm
• Net Weight: 11.0 kg
• Gross Weight: 12.5 kg (including packaging and carrying case)
