SWIT TD-R210S - Light Stand Power Adaptor - QATAR4CAM


SWIT TD-R210S - Light Stand Power Adaptor

QAR 1,450

  • Install 2x V-mount batteries
  • 4pin Regulated 24V out, Max 240W
  • 3pin Regulated 48V out, Max 500W
  • 500W by SWIT Bi-voltage batteries
  • For Skypanel S60/S120 100% output
  • Neutrik XLR connectors
  • 25-45mm light stand install

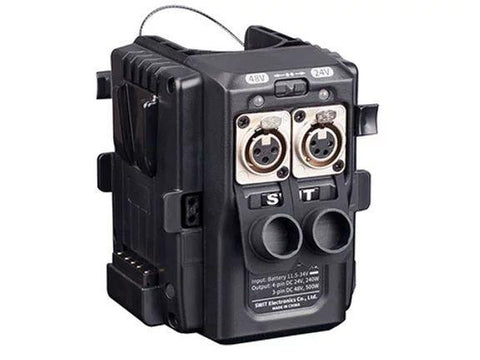

SWIT TD-R210S - Light Stand Power Adaptor

For High Power Cine Lights
By 2 V-mount Batteries, Regulated 24V/48V out

The high power lights usually use 24V or even 48V high voltage input.The TD-R210S is a solution to drive these high power lights with only 2x V-mount batteries, outputs regulated 24V or 48V, high load, portable and easily to be mounted on C-stand.

Output Description
Max 48V 500W Load

Installed with 2x V-mount batteries, the TD-R210S can output 4pin XLR regulated 24V or 3pin XLR regulated 48V DC power. By normal 14.4V batteries, the Max load is 240W; By SWIT 14.4V/28.8V Bi-voltage batteries, the Max load under 48V can reach 500W, to support high power lights like ARRI Skypanel S60-C / S120-C 100% light output.

Battery Type, Outlet Voltage, Max Load

SWIT 14.4V/28.8V Bi-Voltage Batteries
3-pin XLR (Neutrik), 48V regulated, 500W
4-pin XLR (Neutrik), 24V regulated, 240W

Normal 14.4V V-mount Batteries
3-pin XLR (Neutrik), 48V regulated, 240W
4-pin XLR (Neutrik), 24V regulated, 240W

The Max Load should be no more than 2 batteries Max Load sum-up;
Recommend to use same model, same capacity batteries to power.

SkyPanel Power Solution
For S60-C / S120-C 100% light output

SkyPanel S60-C / S120-C consume 430W power, and can output 100% light only input 48V DC. Use 2x SWIT high load bi-voltage PB-H260S with the TD-R210S adaptor, will output 48V 500W for Skypanel S60-C / S120-C.

Compact & Balanced
25-45mm diameter light stand install

TD-R210S has extremely compact size without fans, and fits on 25mm-45mm diameter light stand – all most all stands. It’s balanced with 2 batteries and reliable locker.

Neutrik XLR Socket

To ensure stable high current output, the TD-R210S adaptor uses Neutrik 3-pin & 4-pin XLR sockets, reliable and safe.
