SARAMONIC

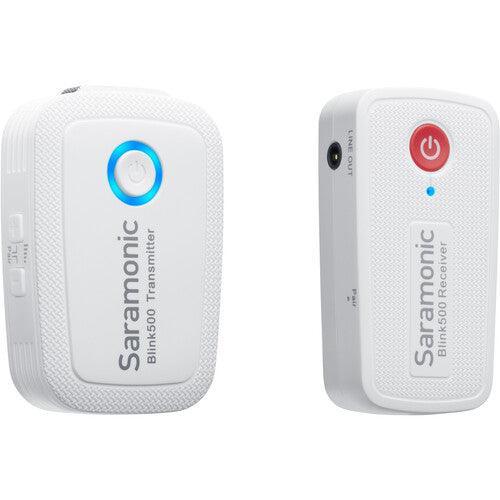

Saramonic Blink 500 B1 Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz, Snow White)
Key Features
- For Journalists, Vloggers, YouTubers
- Omni Lavalier Mic & Built-In Omni Mic
- Ultracompact Clip-On Transmitter
- Ultracompact Dual-Channel Receiver
Saramonic Blink 500 Specs
System
Wireless Transmission | Digital |
Number of RF Channels | 18 |
Transmitters | 1 x Clip-On Transitter with Microphone |
Diversity | Non-Diversity |
RF Frequency Range | 2400 to 2483.5 MHz |
RF Bandwidth | Up to 83.5 MHz |
Maximum Operating Range | 164' / 50 m (Line of Sight) 98.4' / 30 m (with Obstruction) |
# Of Simultaneous Systems | 18 Maximum |
Digital Resolution | 48 kHz / 24-Bit |
Latency | 12 ms |
Encryption | None |
Modulation | GFSK |

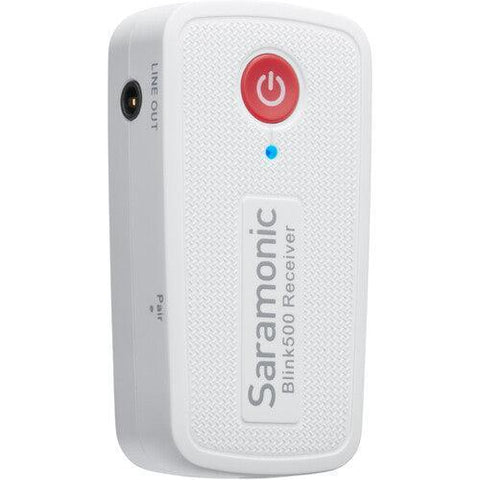

Receiver
Form Factor | Beltpack / Camera-Mount / Portable |
Mounting Options | Belt Clip, Shoe-Mount (with Included Hardware) |
Antenna | 1 x 1/4 Wave Wire, Fixed |
Audio Channels | 2 |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output |
Audio Output Level | 5 dB |
Phantom Power Protection | None |
Frequency Response | 20 Hz to 16 kHz |
USB Connectivity | 1 x USB Type-C (Bus Power, Charging) |
Power Requirements | Battery or USB Bus Power |
Battery Type | 1 x Built-In Rechargeable (Included, Not Replaceable) |
Battery Capacity | 400 mAh |
Battery Charging Time | 2.5 Hours |
Battery Life | Up to 5 Hours |
Indicators | 1 x LED (Battery Status, Power, Recharging, Sync) |
Housing Material | ABS, Plastic |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Dimensions | 2.4 x 1.3 x 0.6" / 6.2 x 3.3 x 1.5 cm |
Weight | 1.1 oz / 31 g |

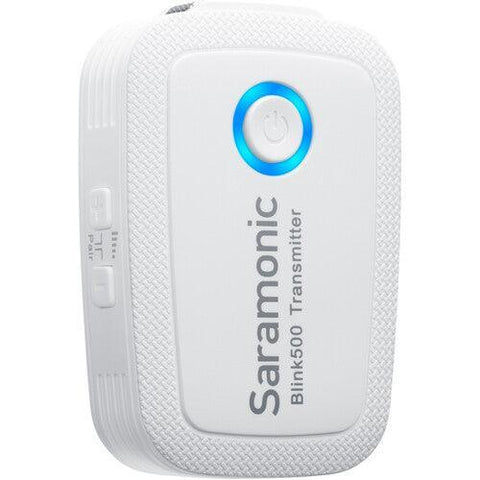

Transmitter
Form Factor | Clip-On Transmitter with Microphone |
RF Output Power | 10 mW |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input |
Plug-In Power | 1 V |
Pad | None |
Muting | None |
Audio Input Level | -42 to -30 dBV (at 0 dB Gain) |
Gain Range | +11 to +25 dB (7 dB Steps) |
Signal Processing | None |
Frequency Response | 20 Hz to 16 kHz |
Sync Mode | IR |
Antenna | 1 x 1/4 Wave Wire, Fixed |
Power Requirements | Battery or USB Bus Power |
Battery Type | 1 x Built-In Rechargeable (Included, Not Replaceable) |
Battery Capacity | 400 mAh |
Battery Charging Time | 1.5 to 2.5 Hours |
Battery Life | Up to 5 Hours |
USB Connectivity | 1 x USB Type-C (Bus Power, Charging) |
Indicators | 4 x LED (Audio Level, Power) 1 x LED (Battery Status) 1 x LED (Recharging) |
Housing Material | ABS, Plastic |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Dimensions | 2.5 x 1.7 x 0.7" / 6.3 x 4.3 x 1.7 cm |
Weight | 1.2 oz / 34 g |

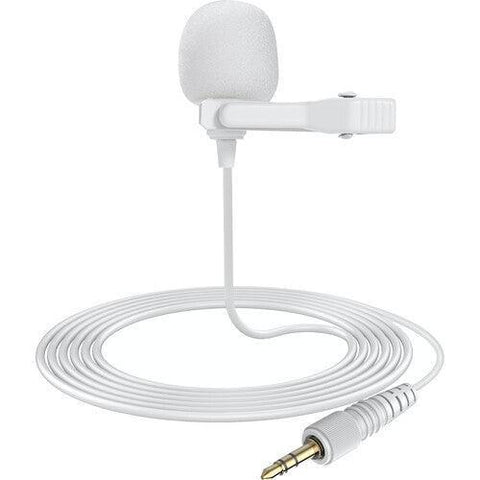

Lavalier Microphone Specs
Form Factor | Lavalier |
Sound Field | Mono |
Operating Principle | Pressure Operated |
Capsule | Electret Condenser |
Polar Pattern | Omnidirectional |
Frequency Range | 50 Hz to 18 kHz |
Equivalent Noise Level | 58 dB |
Maximum SPL | 110 dB SPL |
Sensitivity | -30 dB |
Output Connector | 1 x 1/8" / 3.5 mm TRS Male Unbalanced |
Cable Length | 4' / 1.2 m |
Operating Voltage | 1 V |
Built-In Microphone Specifications
Form Factor | Integrated |
Sound Field | Mono |
Operating Principle | Pressure Operated |
Capsule | Electret Condenser |
Polar Pattern | Omnidirectional |
Frequency Range | 50 Hz to 18 kHz |
Equivalent Noise Level | 58 dB |
Maximum SPL | 120 dB SPL |
Sensitivity | -42 dB |
