Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher - QATAR4CAM

Blackmagic

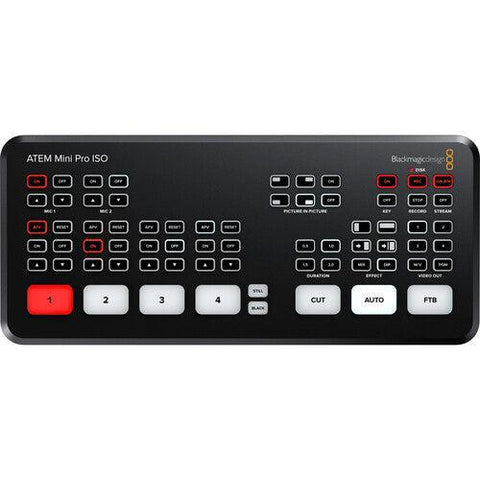

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

QAR 3,800

HIGHLIGHTS

  • 4-Channel Live Stream HDMI Switcher
  • Program and 4 x Input ISO Recording
  • Generates DaVinci Resolve Project
  • Live Tally, Stream, and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer per Source
  • HDMI Output, Ethernet ATEM Control
  • Media Player, Computer Input Support
  • Upstream and Downstream Keyers
  • DVE Transition, Chroma/Luma Keyers

Blackmagic Design ATEM Mini Pro Specs

Mix Effects
Available M/E Layers 5 M/E
Effect Types 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys 1 x Chroma, DVE
2 x Luma
Generators 1 x Pattern
2 x Color
Audio Mixing 2-Channel Mixing
Processing
Switching Type Pushbutton
Color Processing 10-Bit 4:2:2 YUV
Input
Number of Video Input Sources 4
Video Input Connectors 4 x HDMI Female
Input Video Format HDMI (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
Audio Input Connectors 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog:
Embedded Audio Input HDMI: 2-Channel (per Input)
Output
Video Output Channels 1
Video Output Connectors 1 x HDMI
Output Video Format HDMI / RJ45 (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output HDMI: 2-Channel (per Output)
Multiview Output Yes
Monitor Output 1 x HDMI
Connectivity
Other I/O 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output
1 x USB Type-C Firmware, Control Input/Output
IP Encoding/Decoding
IP Video H.264:
1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols RTMP
Simultaneous Streams 1 Streams
Hardware
OS Compatibility macOS 10.14 or Later
Windows 10
Power
Power Connector 1 x Barrel (12 VDC) Input
Power Consumption 36 W
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm
Weight 19.4 oz / 550 g
