AVMATRIX
AVMATRIX Multi-Signal to USB 3.0 Capture
Key Features
- SDI/HDMI/DVI-I/VGA/CVBS/S-Video Inputs
- Supports up to 1080p60 Resolution
- USB-C Port for Capture, Power & Upgrades
- Analog Audio Embedding
- Uncompressed A/V Capture
- UVC & UAC Compliant
- Video & Power Signal LED Indicators

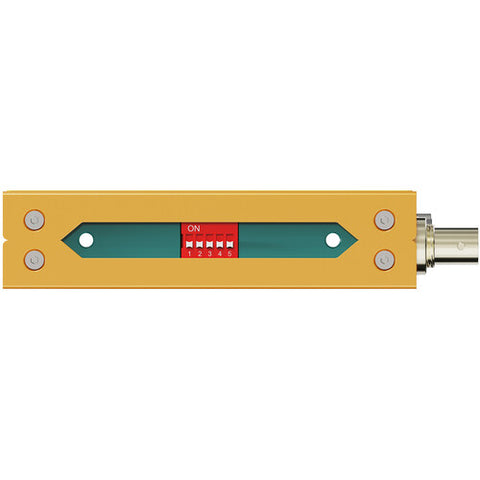

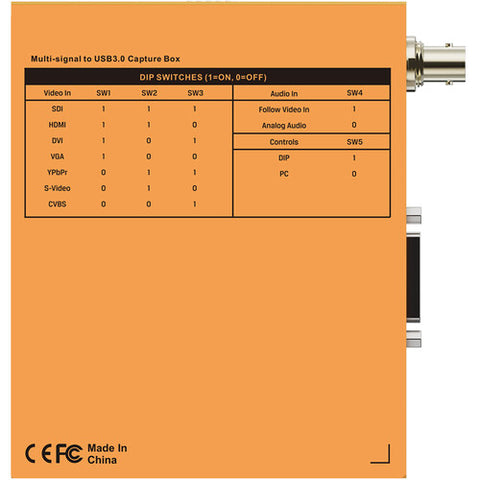

- DIP Switches & Computer Software
- No Drivers or Power Supply Required
- Compatible with Windows, Linux & macOS

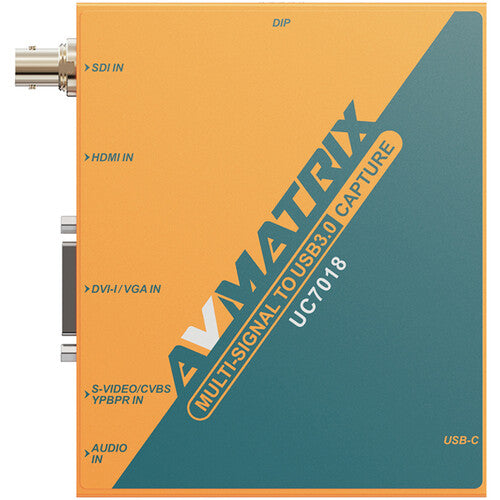

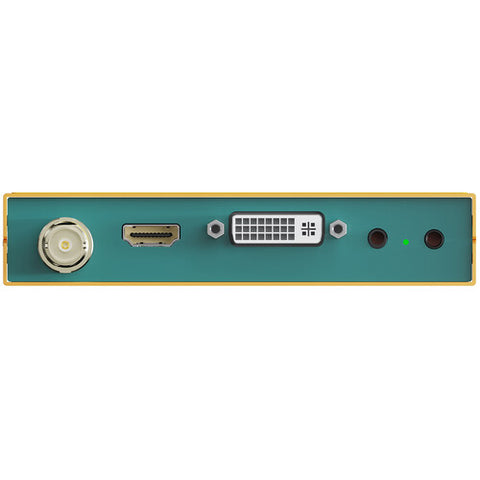

The UC7018 Multi-Signal to USB 3.0 Capture Box from AVMATRIX features SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr input connectivity, a USB-C port for capture, power, and firmware upgrades, and a 3.5mm analog audio input that can be embedded into your output signal. The unit offers uncompressed A/V capture and is UVC and UAC compliant. It does not require any drivers for functionality, and power is supplied via the USB-C port using the included USB-C to USB-A cable with an optional USB power connector. Integrated LED indicators provide video and power signal status.
Uncompromised Capture
The UC7018 embraces a wide range of video signal inputs, including SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr, with support for resolutions up to 1080p60.
Exceptional Color Fidelity
The UC7018 supports RGB32, YUY2, and NV12 video signals, delivering rich and vibrant colors for a detailed live streaming experience.
Easy Audio Embedding
Easily add audio to your video content via the external analog audio input, embedding it directly into your output.
Plug-and-Play, Driver-Free Functionality
