- Square shape design for Cine-cameras
- 146Wh, 10.1Ah larger capacity
- At least 200W, 16A constant high load
- 2× D-tap output sockets (120W/10A in total)
- 1× USB 5V/2A power output sockets
- OLED display accurate remaining run time
- Display power info in both SONY & RED
- Multiple circuit protections

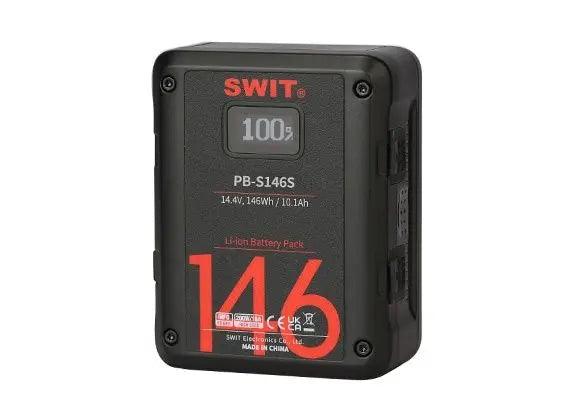

SWIT 146Wh Multi-sockets Square Digital Battery Pack. Square shape design for Cine-cameras - PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.
146Wh /10.1Ah Capacity - Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 146Wh / 10.1Ah high capacity. Can run approx 5 hours for normal 30W cameras.
High Load for Cine Cameras - PB-S146S provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 18A

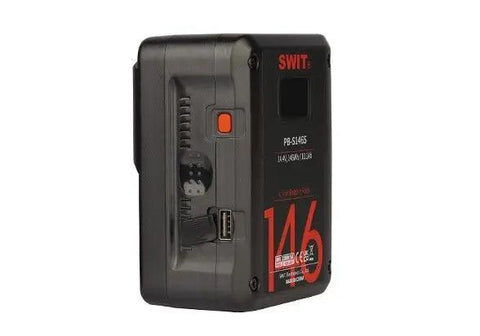

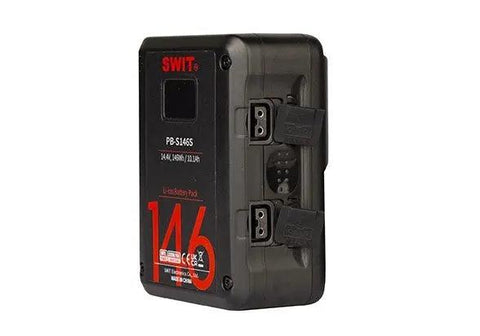

2× D-tap, 1× USB - PB-S146S provides 2x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.
Digital Power Info - LCD display accurate remaining run time - The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.
